Discrete VS. Analog I/O: Understanding the Fundamentals for Industrial Automation
Understanding Input/Output (I/O) in Industrial Automation
In the realm of industrial automation, understanding the nuances of input/output (I/O) is paramount. Two primary types of I/O dominate the landscape: discrete and analog. While both serve to bridge the gap between the physical world and the digital realm, their fundamental nature and applications differ significantly.

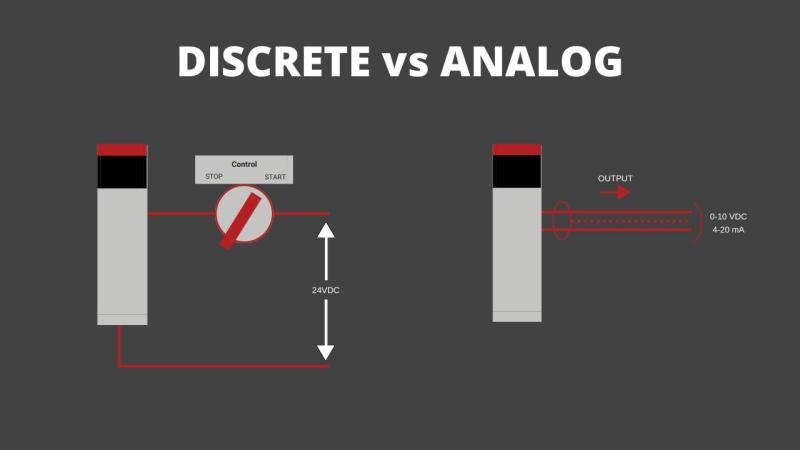

Discrete I/O: The Digital Realm
Discrete I/O represents the digital side of automation, dealing with binary states: on or off, 0 or 1. Consider a simple switch: it's either in the open or closed position. This straightforward operation underpins much of industrial control. Common applications of discrete I/O include:
- Controlling motors and solenoids: Engaging or disengaging equipment based on operational requirements.
- Monitoring limit switches: Ensuring machinery does not exceed predetermined operational limits.
- Interfacing with relays and contactors: Facilitating electrical isolation and control in a variety of applications.
Analog I/O: The Continuous World
In contrast, analog I/O captures the continuous nature of physical quantities, dealing with a range of values such as voltage or current. Examples of analog signals include:
- Temperature readings from a thermocouple: Providing real-time data for process monitoring and control.
- Pressure measurements from a transducer: Essential in applications where pressure levels impact performance.
- Flow rate from a flowmeter: Vital for ensuring processes maintain optimal flow conditions.
Key Differences
Understanding the key differences between discrete and analog I/O highlights their unique roles in automation:
- Nature of Signals: Discrete signals are binary (on/off), while analog signals are continuous (varying values).
- Resolution: Discrete signals are limited in states, often just two, whereas analog signals can represent numerous values across a defined range.
- Applications: Discrete I/O is ideal for on/off control tasks, while analog I/O excels in process monitoring and control where nuanced adjustments are necessary.
Choosing the Right I/O
Selecting the appropriate I/O type hinges on the specific application and operational demands. Consider the following factors when making your decision:
- Accuracy: For precise measurements and detailed readings, analog I/O is generally preferred.
- Speed: Discrete I/O is often faster, making it suitable for simple on/off control scenarios.
- Cost: Discrete I/O is typically more cost-effective due to its simpler structure and implementation.
Real-world Applications
Both discrete and analog I/O play crucial roles in various industries. For instance, in a manufacturing plant, discrete I/O might control the movement of a robotic arm through simple binary signals, while analog I/O could monitor the temperature of a heating process, requiring real-time adjustments based on continuous data.
Conclusion
Understanding the distinction between discrete and analog I/O is essential for industrial automation engineers. By grasping the fundamental concepts and applications of each type, professionals can make informed decisions to optimize their systems, ensuring efficiency and achieving desired outcomes in their operations.
